Mini Track Linear Actuators

by firgelliautomation
Price $109.99

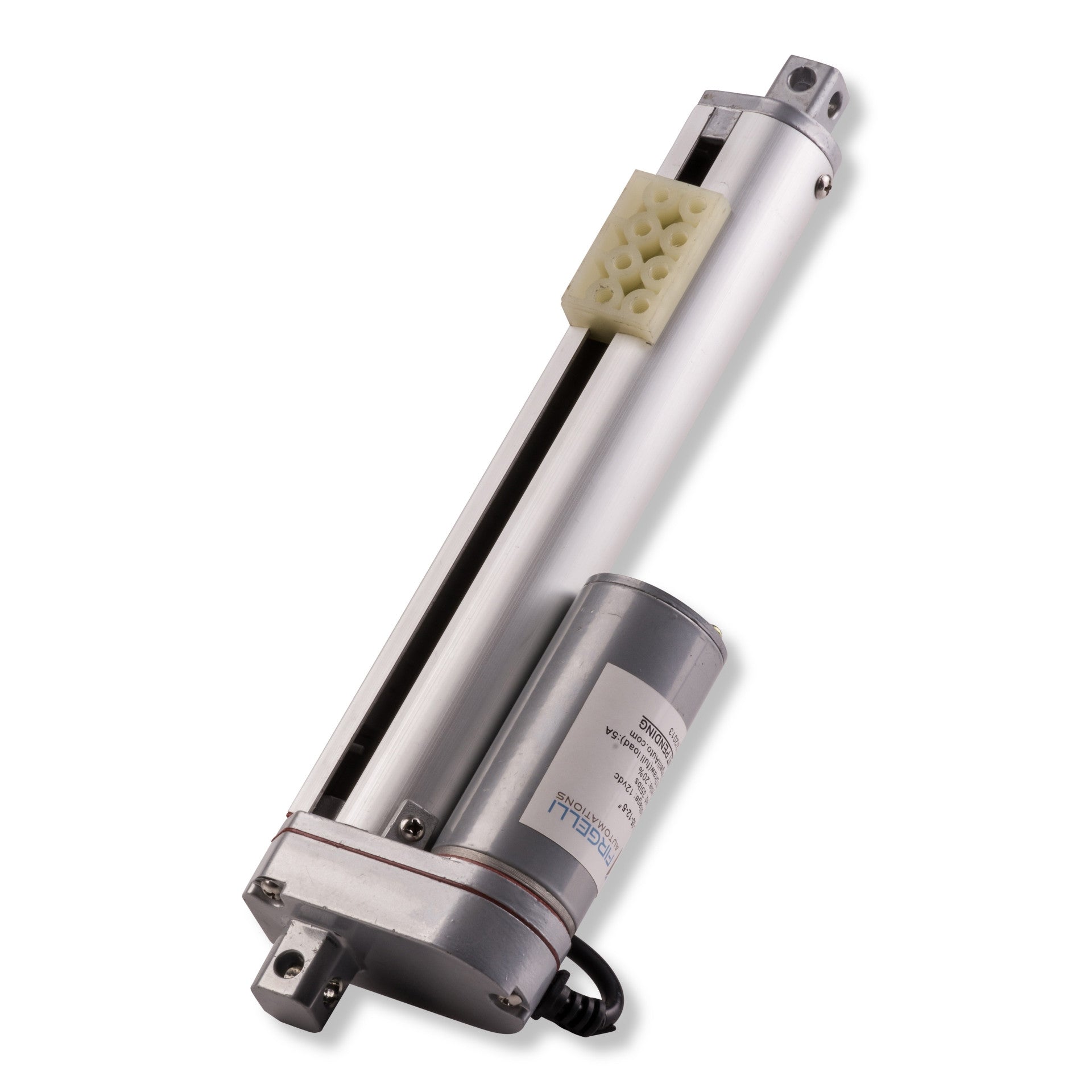

Mini Track linear actuators have been developed by us for applications where space is limited. These actuators have no rod that slides in and out instead they have a slider that slides up and down the main body of the Actuator. This means they are more compact and offer more flexibility with your Automation projects.

  • 2-wire harness, reverse polarity to change direction
  • Built in limit switches, not movable
  • Weight approx 2lbs
  • 8 x M5 mounting holes
  • MB1 Brackets sold separately fits on both ends
  • MB9 Brackets sold separately, fits on the moving block.
